PayTabs SDK makes the integration with the PayTabs payment gateway very easy by providing a ready-made payment screen that handles the card entry and, billing & shipping information and completes the missing details.


This article is dedicated to walking you through how to manage the theme in this SDK to be more fit and customized to suit your business needs.


By using the following guide to customize the colors, fonts, and logo, you will be configuring the SDK's theme that will be passed to the payment configuration.


UI guide


Managing Theme in this SDK categorizing into the below:

Android Overriding Resources


This indicates how to override multiple resources provided by PayTabs for more customizations to your mobile application which are listed below:


  • Strings

    This indicates how to override strings via adding a strings.xml file to override from below with the value you want within the SDK (src/main/res/values/). As shown below the list of all attributes that you can adjust to suit your translation as listed below

    <?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="payment_sdk_3d_secure_title">"3D Secure"</string>
    <string name="payment_sdk_credit_card_screen_title">"Credit Card</string>
    <string name="payment_sdk_card_name_on_card_title">"Name on Card"</string>
</resources>


    Find the keys with the default values here English, Arabic.

  • Colors


    This indicates how to override colors via adding a colors.xml file to override from below with the value you want within the SDK (src/main/res/values/). As shown below the list of all attributes that you can adjust to suit your business design as listed below:
    <resourse> // to override colors
<color name="payment_sdk_primary_color">#5C13DF</color>
<color name="payment_sdk_secondary_color">#FFC107</color>
<color name="payment_sdk_primary_font_color">#111112</color>
<color name="payment_sdk_secondary_font_color">#6D6C70</color> <color name="payment_sdk_separators_color">#FFC107</color>
<color name="payment_sdk_stroke_color">#673AB7</color>
<color name="payment_sdk_button_text_color">#FFF</color>
<color name="payment_sdk_title_text_color">#FFF</color>
<color name="payment_sdk_button_background_color">#3F51B5</color>
<color name="payment_sdk_background_color">#F9FAFD</color>
<color name="payment_sdk_card_background_color">#F9FAFD</color>
<color name="payment_sdk_status_bar_color">#FFC107</color>
</resourse>



  • Dimen


    This indicates how to override dimens via adding a dimen.xml file to override from below with the value you want within the SDK  (src/main/res/values/). As shown below the list of all attributes that you can adjust to suit your business design as listed below:
    <resourse>// to override dimens
<dimen name="payment_sdk_primary_font_size">17sp</dimen>
<dimen name="payment_sdk_secondary_font_size">15sp</dimen>
<dimen name="payment_sdk_separator_thickness">1dp</dimen> <dimen name="payment_sdk_stroke_thickness">.5dp</dimen>
<dimen name="payment_sdk_input_corner_radius">8dp</dimen>
<dimen name="payment_sdk_button_corner_radius">8dp</dimen>
</resourse>


  • Fonts


    You can overwrite your application fonts by adding your custom fonts files named as shown below in your project at this specific folder path (src/main/res/font):

    payment_sdk_primary_font.tff
    payment_sdk_secondary_font.tff


  • Drawables


    You can overwrite your application drawables such as the back button icon by adding your own drawable file  named as shown below in your project at this specific folder path (src/main/res/drawable):

    payment_sdk_back_arrow.xml


  • Handle night/light mode


    You can handle this via adding the overrides light XML files inside the directory (src/main/res/values/) and the dark XML files in directory (src/main/res/values-night/)


iOS Overriding Resources


  • Theme


    Use the following guide to customize the colors, font, and logo by configuring the theme and pass it to the payment configuration.
    var theme = IOSThemeConfigurations();
theme.backgroundColor = "e0556e"; // Color hex value
configuration.iOSThemeConfigurations = theme;


    You can find the list of all IOSThemeConfigurations object attributes that you can adjust to suit your business design as listed below:

    • logoImage
    • secondaryColor
    • secondaryFontColor
    • secondaryFont
    • primaryColor
    • primaryFontColor
    • primaryFont
    • buttonColor
    • buttonFontColor
    • buttonFont
    • titleFontColor
    • titleFont
    • backgroundColor
    • placeholderColor
    • strokeColor
    • strokeThincknes
    • inputsCornerRadius



  • Handle dark/light mode

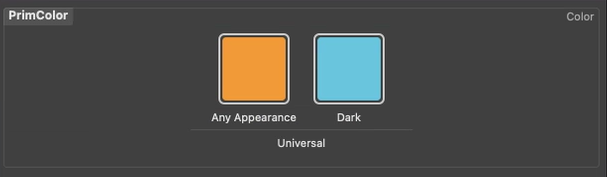

    You can handle this via set color, for example, PrimColor, as shown below:


    Then assign this color to the attribute you want, and the color will change according to the mode:
    theme.primaryColor = UIColor(named: "PrimColor ");
